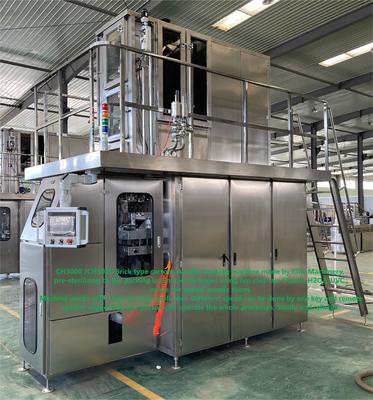

Turn Key Project Aseptic Carton Filling Machine with Triple Sterility Guarantee and Servo Follow-up Correction System

  • Turn Key Project Aseptic Carton Filling Machine with Triple Sterility Guarantee and Servo Follow-up Correction System
  • Turn Key Project Aseptic Carton Filling Machine with Triple Sterility Guarantee and Servo Follow-up Correction System
Фирменное наименование CHIC
Сертификация ISO CE
Model Number CHIC-3000BS
Minimum Order Quantity 1 Pcs
Packaging Details Laminated Paper Cartons
Delivery Time 35-40 Days
Payment Terms 40%TT Deposit And 60% TT Before Shipping
Supply Ability Milk, Juice, Wine, Water, Food And Degergent Sauce,

Свяжитесь я бесплатно образцы и талоны.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Скайп: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Точность заполнения 00,5-1% Пакуя емкость 1000-3000 куб.см.
Потребление воздуха 3м³/мин, 0,8-1МПа Заполняя формат 1000 мл Призма, квадрат или основа
Размер крышки φ26-φ36, один размер для одной машины или по индивидуальному заказу Решение Проект «под ключ»
Машина СУС304 Контроль ПЛК
Выделить

Aseptic carton filling machine 1000ml

,

Prisma CH-3000B filling machine

,

Turn key aseptic filling machine
Оставьте сообщение
Характер продукции
Turn Key Project Aseptic Carton Filling Machine with 1000ml Prisma CH-3000B Filling Format
Product Description
1000ml Gable Carton Aseptic Filling Machine For 100% Pure Juice

The CH series aseptic carton filling machine is designed for filling sterilized liquid food into sterilized packaging materials in an aseptic environment. It completes the sealing and forming of the package to prolong the product's shelf life. This machine incorporates the latest aseptic concepts from both domestic and international sources. It innovatively utilizes the "triple sterility guarantee" technology to ensure exceptional performance, production stability, and automation.

This aseptic filling machine is ideal for producing a range of pure beverages such as pure milk, pure goat milk, soy milk, and vegetable protein beverages. The equipment features an integrated design that combines machinery, electricity, and pneumatic systems. It holds six national patents and excels in comparison to similar machinery due to its simple structure and ease of maintenance.

The machine utilizes top-tier control components from international brands to deliver high automation levels, easy operation, and a low failure rate. Notably, it consumes only one-third of the energy compared to similar foreign products.

Turn Key Project Aseptic Carton Filling Machine with Triple Sterility Guarantee and Servo Follow-up Correction System 0 Turn Key Project Aseptic Carton Filling Machine with Triple Sterility Guarantee and Servo Follow-up Correction System 1
Key Features
  • Advanced fully automatic control technology with PLC system control
  • Operational reliability with multi-point sensing alarm control system
  • Fully automatic strip pasting system and safe sterile system
  • Servo follow-up correction system for precise operation
  • Fast and reliable pre-forming system with servo-controlled terminal shaping
  • Human-machine interface monitoring system for intuitive operation
  • Key components sourced from internationally renowned companies
  • Suitable for six-layer web composite packaging materials
Technical Specifications
No Name Parameters
1 Standard capacity 1L Square type carton
2 Brick cartons specifications Customized as your drawing and sample laminated paper roller
3 Packaging Raw paper aluminum foil polyethylene 7-layer laminated composite paper
4 Capacity 1000-3000 cartons/h
5 Number of operators 2
6 Equipment external dimensions 4830mm×2150mm×3780mm
7 Total weight 2000Kg
8 Total power 20KW
9 Compressed air consumption 3m³/min
10 Compressed air working pressure 0.8-1MPa
11 Cooling water Clean soft water
12 H₂O₂ consumption 0.2L/per shift
13 H₂O₂ concentration 35%
Applications

This machine is designed for filling various liquid beverages such as soy milk, plant milk, yogurt, fruit and vegetable juices, and plant protein. The packaging is done using paper aluminum plastic composite packaging cartons, which are environmentally friendly.

The CHIC series filling machine is available in different models tailored to the shape and capacity of the products, including 125ml, 200ml, 250ml, 330ml, 500ml, and 1000ml variants with various carton types and cap/straw options.

Support and Services

Our Aseptic Carton Filling Machine comes with comprehensive technical support and services to ensure smooth operations. Our team provides assistance with installation, training, troubleshooting, and maintenance. We offer regular maintenance checks, spare parts availability, and remote support services to maintain optimal production line performance.

Frequently Asked Questions
Q: What is the brand name of the Aseptic Carton Filling Machine?
A: The brand name is CHIC.
Q: What is the model number of the Aseptic Carton Filling Machine?
A: The model number is CHIC-3000BS.
Q: Where is the Aseptic Carton Filling Machine manufactured?
A: The machine is manufactured in China.
Q: What certifications does the Aseptic Carton Filling Machine have?
A: The machine is certified with ISO and CE.
Q: What is the minimum order quantity for the Aseptic Carton Filling Machine?
A: The minimum order quantity is 1 piece.
