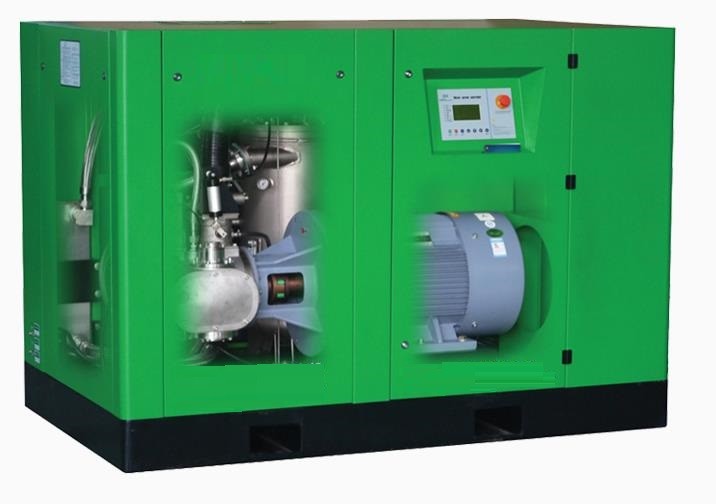

12.5 Bar Industrial Dry Screw Air Compressor Water Lubricated

  • 12.5 Bar Industrial Dry Screw Air Compressor Water Lubricated
  • 12.5 Bar Industrial Dry Screw Air Compressor Water Lubricated
  • 12.5 Bar Industrial Dry Screw Air Compressor Water Lubricated
Место происхождения КИТАЙ
Фирменное наименование OEM
Сертификация CE
Номер модели CHIC-08BF/12.5
Количество мин заказа 500
Упаковывая детали пакуя размер (L×W×H): 1350mm×774mm×1150mm
Время доставки 7days
Поставка способности 500ПКС/ДАИ

Свяжитесь я бесплатно образцы и талоны.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Скайп: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Имя Компрессор воздуха винта роторного масла CHIC-08BF/12.5 12.5Bar сразу управляемый используемый свобо Доставка воздуха ³ /min 1.02m
ЭЛЕКТРИЧЕСТВО Трехфазные 380/60 или 440/60 (V//Hz) Давление 12.5Bar
уровень шума 58DB Сила 10HP/7.5KW
N.weigh 500KGS Цвет Зеленый цвет
Выделить

12.5Bar dry screw air compressor

,

R1 inch dry screw air compressor

,

12.5Bar industrial screw compressor
Оставьте сообщение
Характер продукции



accurate exhaust pressure. Within the flow range, the pressure fluctuation range of CM/PV variable frequency water-lubricated screw compressor can reach 0.01MPa.

Third, avoid current omen, CHIC converter start is more stable than the commonly known soft start, completely avoid current peak, no impact on the power grid.

CHIC  series variable frequency water-lubricated oil-free screw compressor has the function of variable frequency switching. According to the size of gas free choice, to achieve the minimum cost of electricity.

 CHIC  screw compressor adopts frequency conversion motor, with wide speed range, strong lower torque reduction and good stability.

 12.5 Bar Industrial Dry Screw Air Compressor Water Lubricated 0



Technical parameters



Model CHIC-08BF/12.5
Power 15HP/11KW
FAD: (M3/MIN) 1.02
Pressure 12.5 bar
Cooling Air-cooling
Noise level 58dB
Drive method Direct drive type
Discharge temperature Environment temp+15℃
Electricity Three phase 380/60 or 440/60 (V//Hz)
Air outlet: Pipe diameter(inch) R1
delivery 15-20 days
Dimension 1350MM*774MM*1150MM
Net weight 580KGS


Packaging & Shipping


Packaging Details
Standard export carton or plywood case 1pcs/box
Port
Shanghai/Ningbo



12.5 Bar Industrial Dry Screw Air Compressor Water Lubricated 1

Our services



1.We promise to reply your inquiry relational our product within 24hours.

2.OEM&ODM service for your unique idea with absolutely convenient.

3.Experienced foreign trader with professional product knowledge.

4.Value on business credite , promise to protect your sales data, design,patent information.

5. Sample & OEM service is available

6. After-sales service. any question will be settled within 3 days



FAQ



Q1. Are you a factory?
A. Yes, We are professional air compressor factory with more than 10 years experience.

Q2. How can i get a quotation?
A. Leave us message with your purchase requemets and we will reply you within one hour on working time. And you may contact us directly by Trade Manager

Q3. How many design do you have? How can i get your catalog?
A. We have hundreds of advanced design for your choice , And we have new design every year. Just tell us what kind of product you need and we will provide you plenty of choice,

Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.

Q5. What's the delivery time and what's the package?
A. Normally the delivery time is about 25-35 days, Al our products are packed with sea worthy package.
