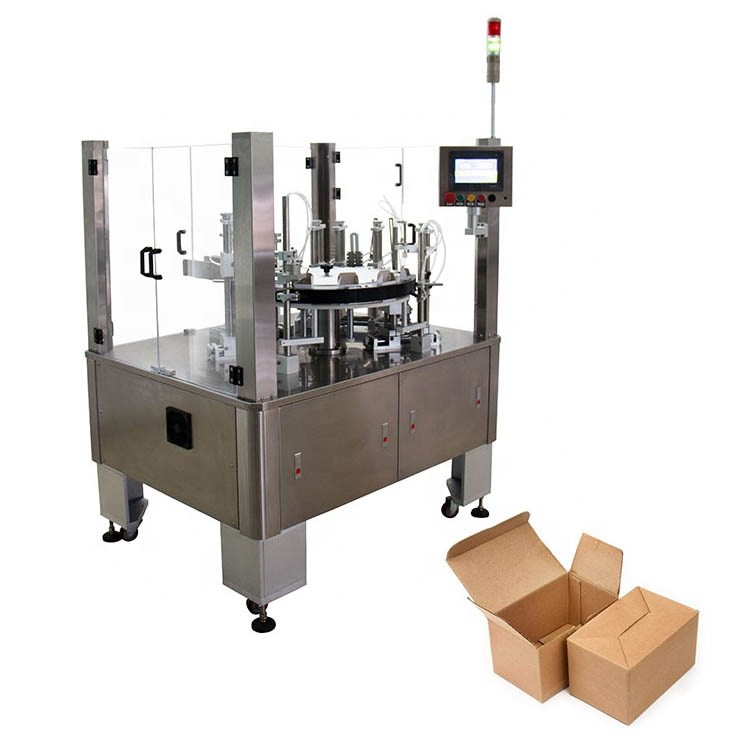

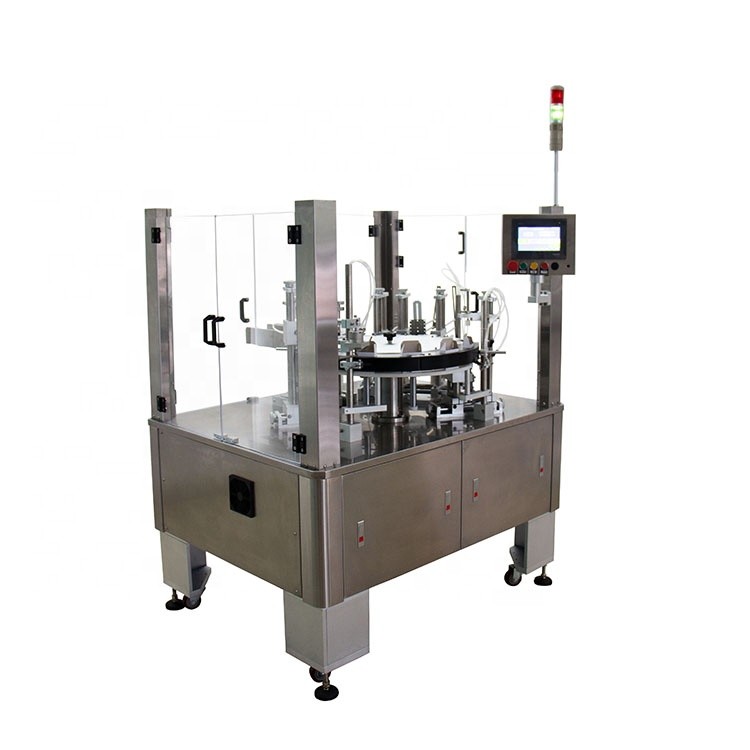

Легкий приведитесь в действие автоматические вертикальные Cartoning коробки машины 20-50/минуту

OPTION :Leaflet Inserting , Hot Glue, Hot Ribbon Date Code , Embossed date Code



Specifications :



Project / Model	DDU-50
Packing speed	20-50 boxes / minute
Maximum size of the carton	200 x 80 x 80mm
Minimum size of the carton	60 x 20 x 20 mm
Paper box paper requirements	250-350g/m3
Motor power	1/4HP 15:1
Power type	220V 50/60HZ
Machine noise	≤80dB
Gas source	0.5-0.8 Mpa
Gas consumption	150L/min
Dimensions	L 1100 x W 1500 x H 1900 mm
Machine weight	250Kg



1.It is specially design to pack small quantities multi size box.
2.With low cost and only require small area. It is suitable for various sizes of box. The machine is a vertical type with multiple
function and require a short time to change mould.
3.304 stainless steel case
4.Advanced PLC Control System Combined with 5.7” Colorful Touch Screen Control Panel ,can easily set and change the packing
parameters.

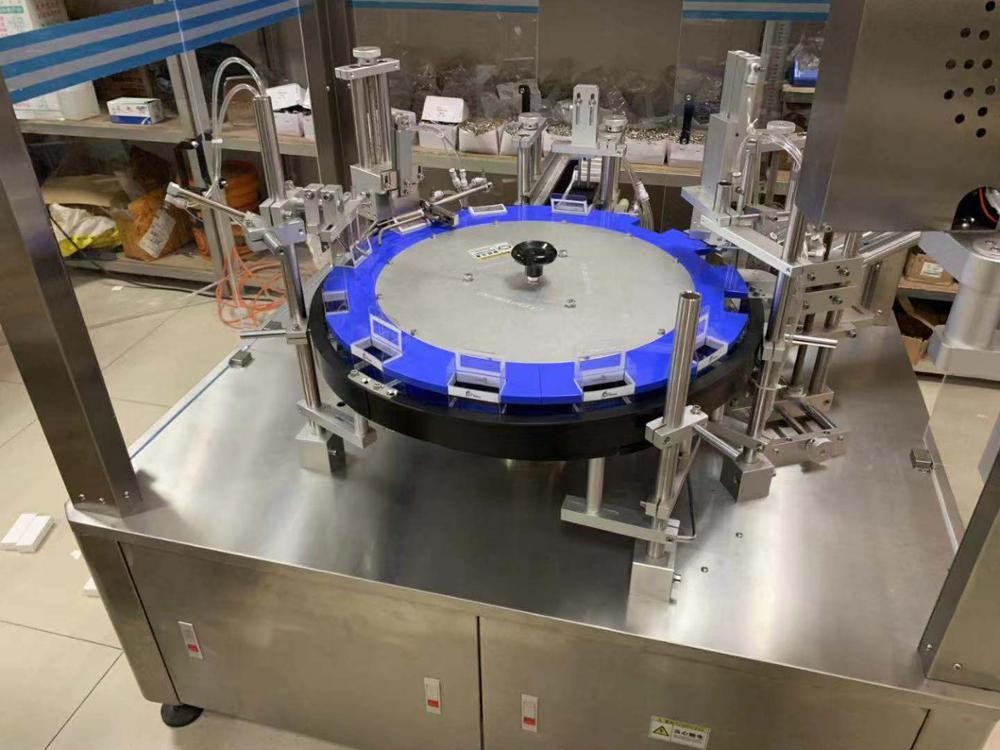

1.Push box into star wheel.
2.Fold box lower small flap.
3.Press both lower big flaps.
4.Flatten both big flaps.
5.Product fall into box.
6.Fold box upper small flap.
7.Press both upper big flaps.
8.Flatten both big flaps.
9.Product push out.



machine accessory list:



Name	Number	Brand	Brand origin
Touch screen	1	Siemens	Germany
PLC	1	Siemens	Germany
Relay	12	Omron	Japan
Circuit breaker	3	Schneider	Germany
Air switch	1	Schneider	Germany
Suction box cylinder	1	Festo	Germany
Vacuum generator	1	Festo	Germany
Lower lock box cylinder	3	Festo	Germany
Lock box cylinder	3	Festo	Germany
Whole box cylinder	1	Festo	Germany
Cylinder box out	1	Festo	Germany
Pressure box cylinder	1	Festo	Germany
Solenoid valve	12	Festo	Germany
Triple Filter	1	Festo	Germany
Emergency stop switch	1	Schneider	Germany
Indicator light	1	Schneider	Germany
Empty box probe	1	SICK	Germany





FAQ



Q1: How to find a Packing machine suitable for my product?



Tell us about your product details and packing requirements.



1. What kind of product?

2. Production size or bag/sachet/pouch/carton size of you need for the product packing ( the length, width).

3. The weigh of each pack you need.

4. You requirement for the machines and the bag/carton type.



Q2: Are you a real factory/manufacturer?



Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel.



You don’t have time? We can use live video and you can visit us on line.



Q3: Is engineer available to serve oversea?



Yes, we can send engineers to your factory but all the fee will be on buyers.



In order to save your cost, we will send you a video of full details machine installation and assist you till the end.



Q4. How can we make sure about the machine quality after placing the order?



Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you satisfy. We will setting all the parameters well.



And also you can arrange for quality checking by yourself or by your contacts in China.



Q5. We are afraid you won't send us the machine after we send you the money?



We have our business license and certificate. And it is available for us to use trade assurance service, protect your money, machine quality and delivery are guarantied



Q6. Can you explain me the whole transaction progress ?



1. Sign the Contact/order on we have trade assurance.

2.Arrange 30% deposit to our factory



3.Factory arrange production



4.Testing & detecting the machine before shipping



5.Inspected by customer or third agency through online or site test.



6. Arrange the balance payment before shipment.

Q7: Will you provides the delivery service?



A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
